SKU: HE-20

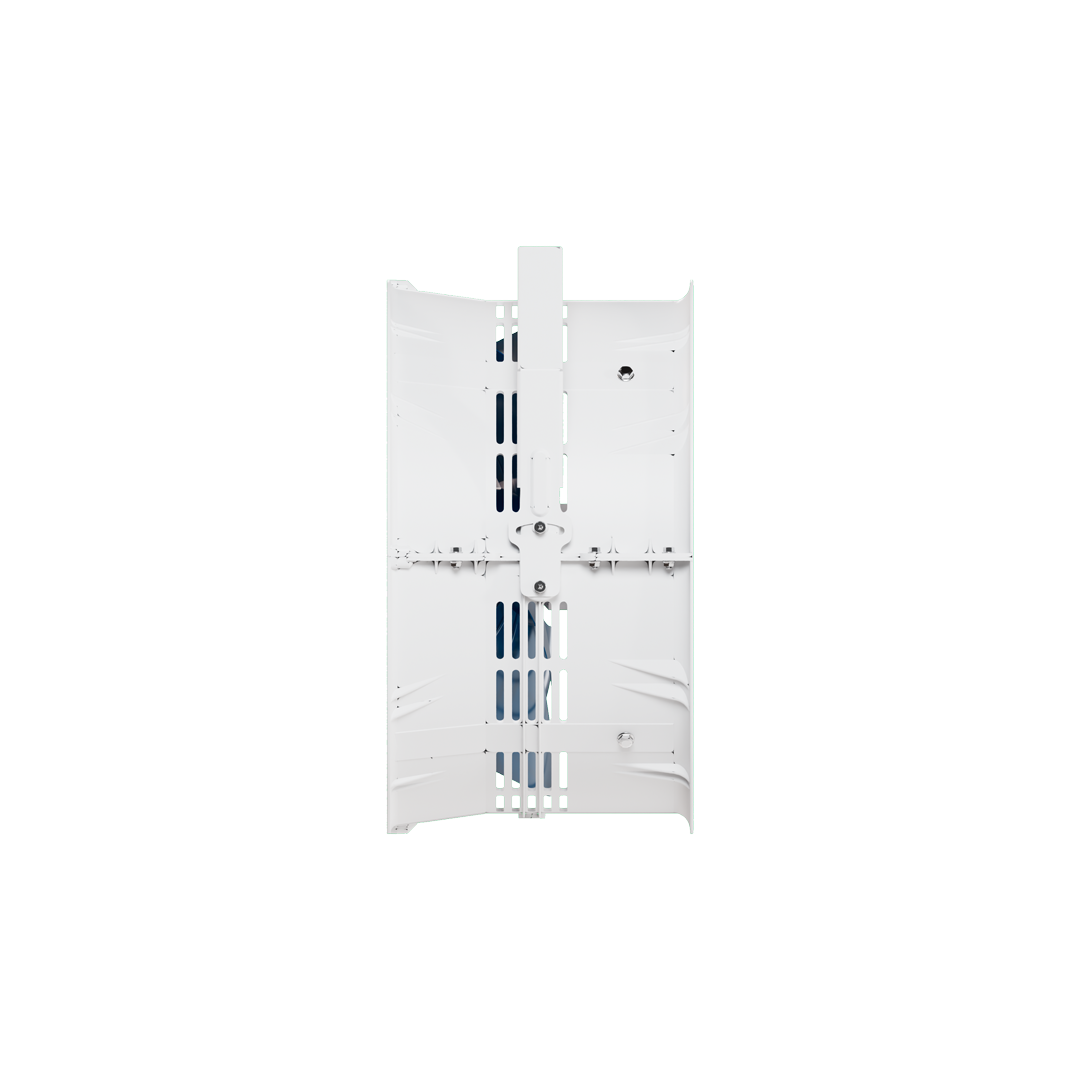

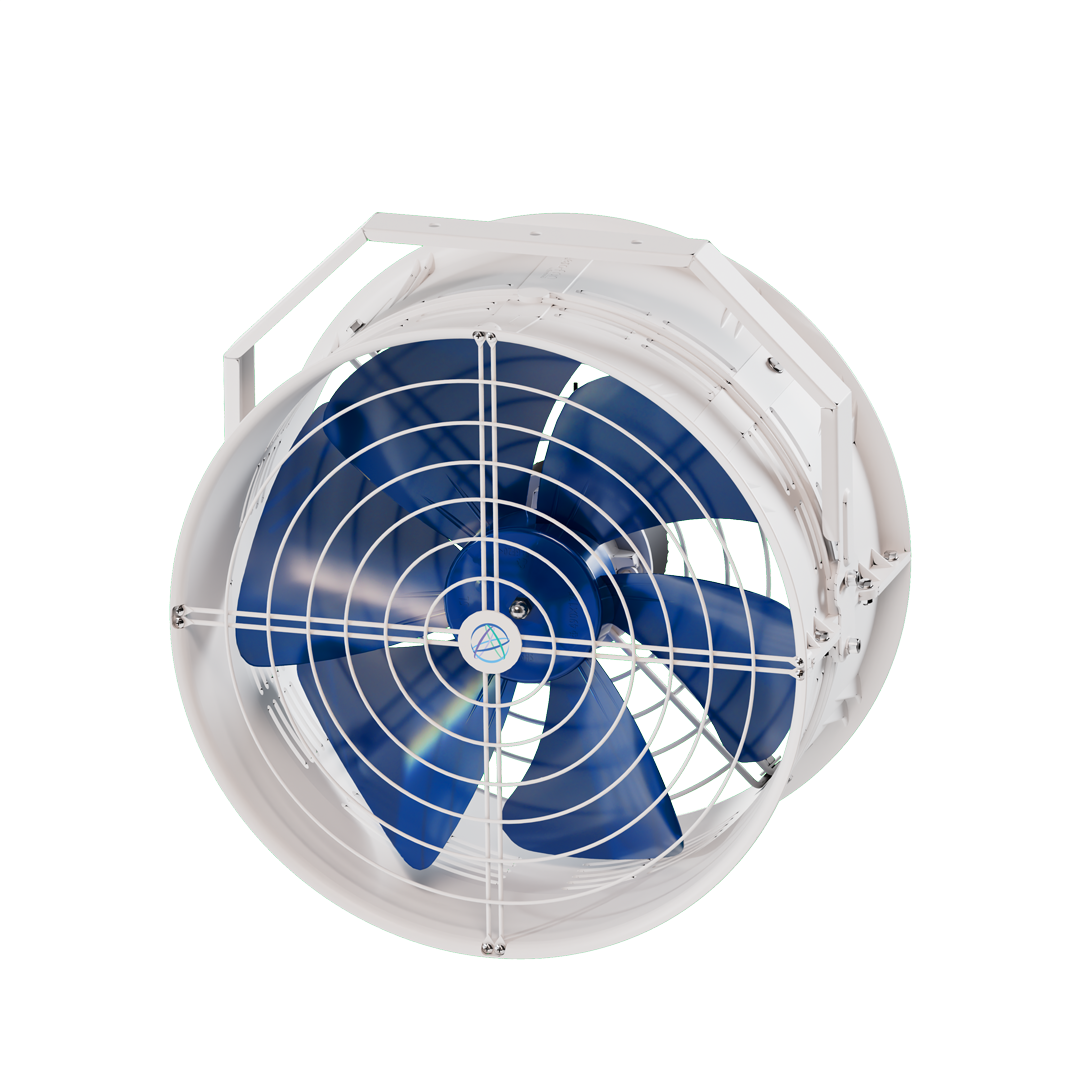

Aero-Fan HE-20 20 Inch High Velocity Fan
20 Inch High Velocity Fan
Product Features
- 20" Drum Fan
- Fan speed adjust by digital signal
- work without VFD driver
- 200-277VAC Automatic Voltage Sensing
- Unparalleled Controlability Functions when paired with TrolMaster Controllers
The 20 Inch High Velocity Fan is a compact and efficient fan designed to improve air circulation and ventilation in indoor spaces. With its powerful motor, it moves a significant volume of air, removing stale air, and humidity. Its versatile design allows easy installation in various duct systems, ensuring a fresh and comfortable environment.
Specifications
Technical Specifications
Operating Voltage
200-277VAC
Rated Current
3.0A Max
Rated Input Power
300W Max
No. of Blades
6
Max. Air Flow
3986cfm
Max. Static Air Pressure
110Pa
Rotating Direction
CCW
Operating Temperature
-4~140°F
Mean Time To Failure (MTBF)
50000H (25°C)
IP Rating
IP66
Dimensions
310*560*594mm
Net Weight
10.5KG/23.15lb
Package Contents
HE-20 High Velocity Fan
1pc
ECS-7 Cable
1pc
ECS-9 Cable
1pc
