SKU: DSH-1

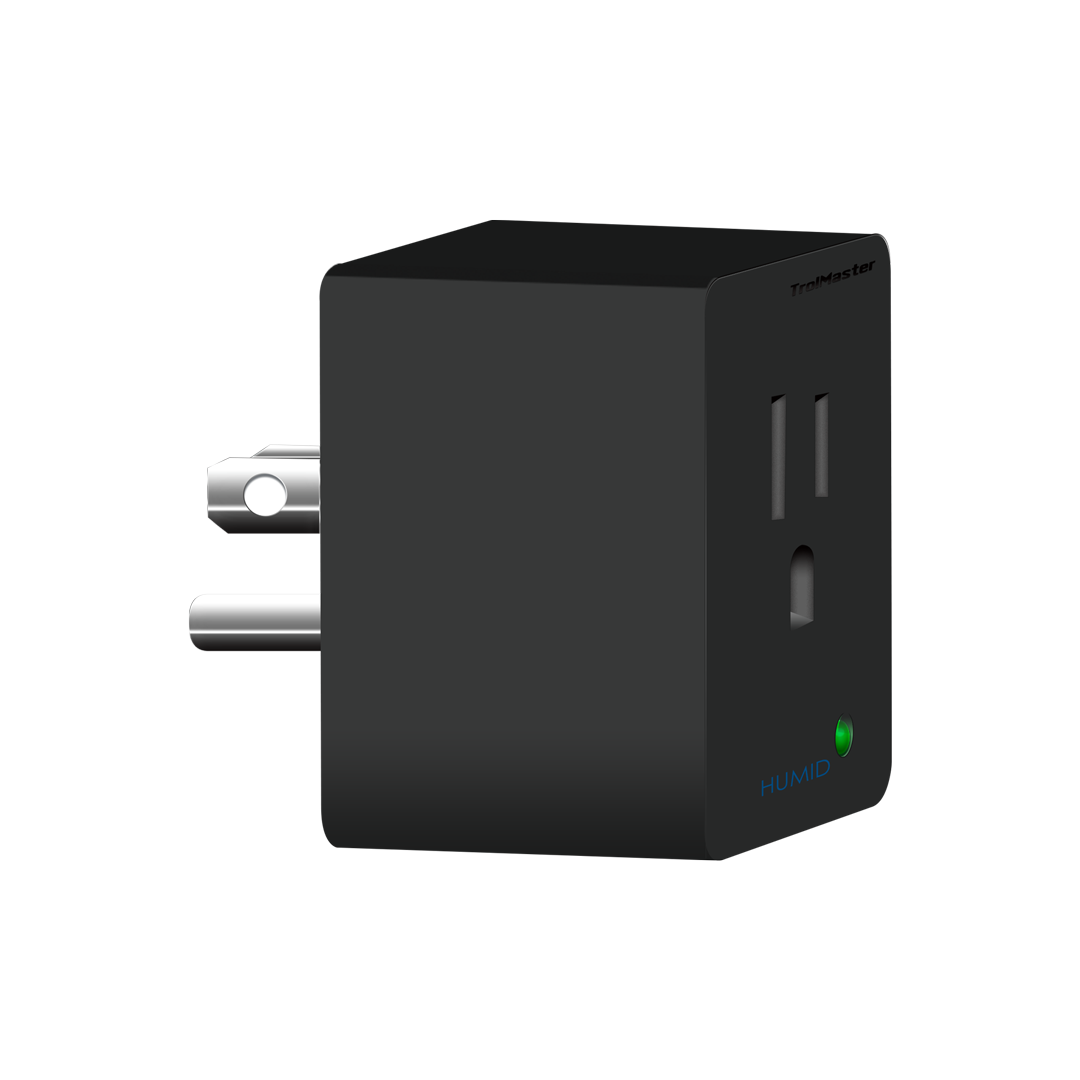

Humidity Device Station (DSH-1)
Humidity Device Station
Humidity Control Relay Single Pack with cable set
Product Features

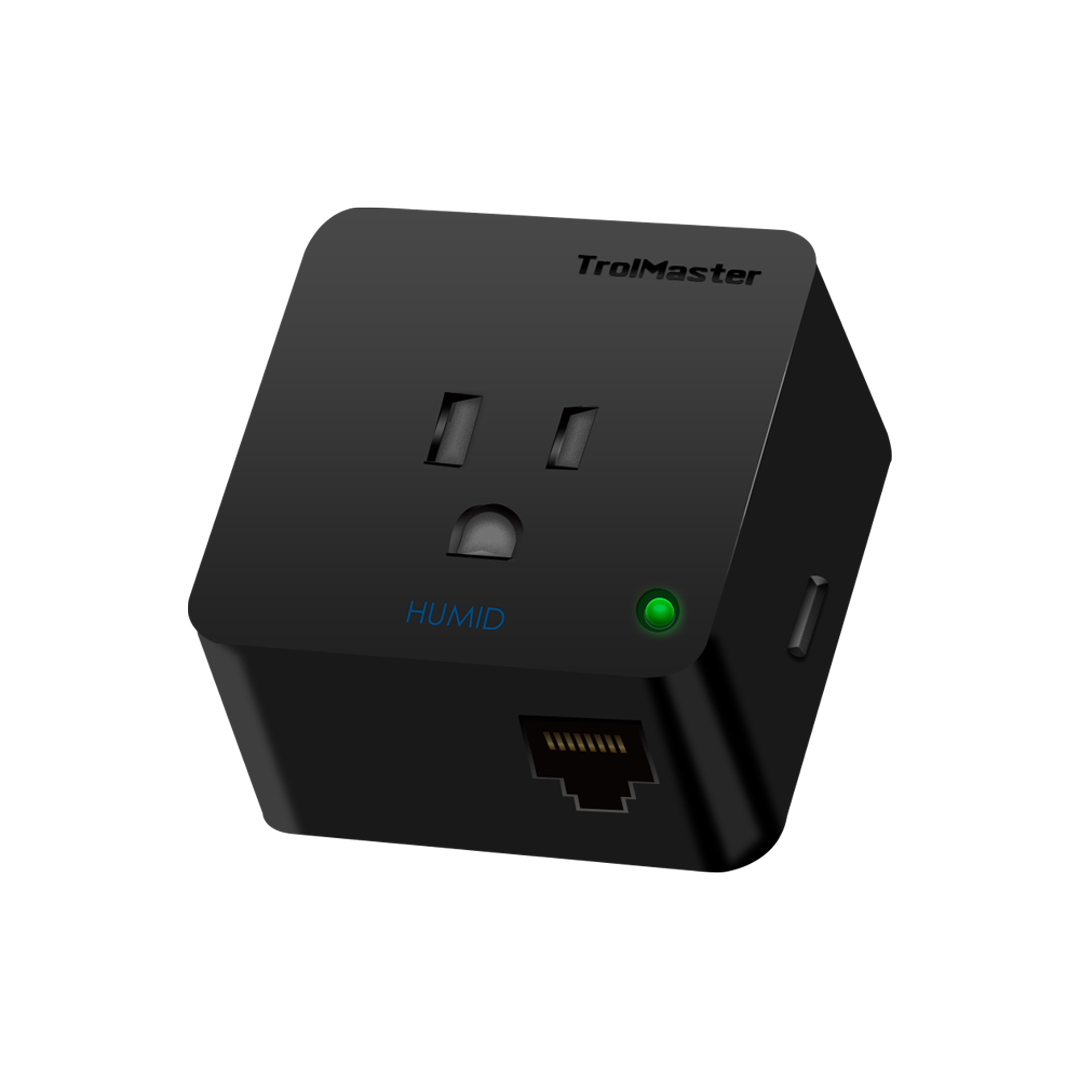

- LED Power Indicator
- RJ12 Cable Socket
- Addressing
- Plug & Play
The TrolMaster DSH-1 Humidity control / device modules allow user to easily connect and control standard humidifying or dehumidifying devices to the Hydro-x. The DSH modules are rated at 10-amps. *Use with dehumidifiers less than 7 amps to avoid current overload.
US – Type B: Standard household outlets in the U.S. use Type B (two flat pins with a grounding pin). Voltage: 120V at 60Hz. Common for everyday electronics.
Specifications
Technical Specifications
Input Voltage
100~240 VAC, 50/60Hz
Output Current
10A
Output Voltage
100~240 VAC, 50/60Hz
Working Temperature
32-122°F
Working Humidity
<90%
Package Contents
Device Station
1
16ft RJ12 Cable
1
4ft RJ12 Cable
1
RJ12 T-Splitter
1

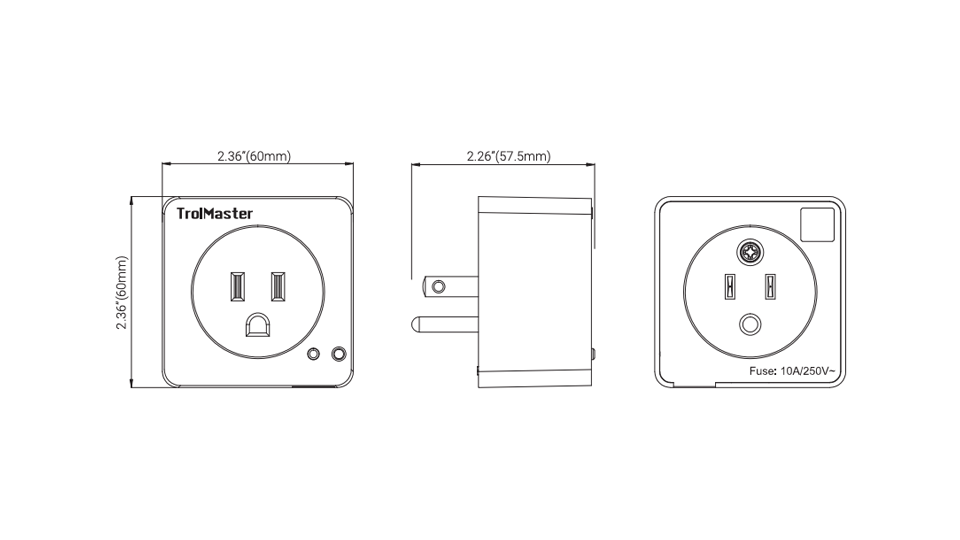

Dimension
