SKU: DSH-2
Humidity Device Station (DSH-2)
240V Humidity Device Station
240V Humidity Control Relay Single Pack with cable set
Product Features
- LED Power Indicator
- RJ12 Cable Socket
- Addressing
- Plug & Play

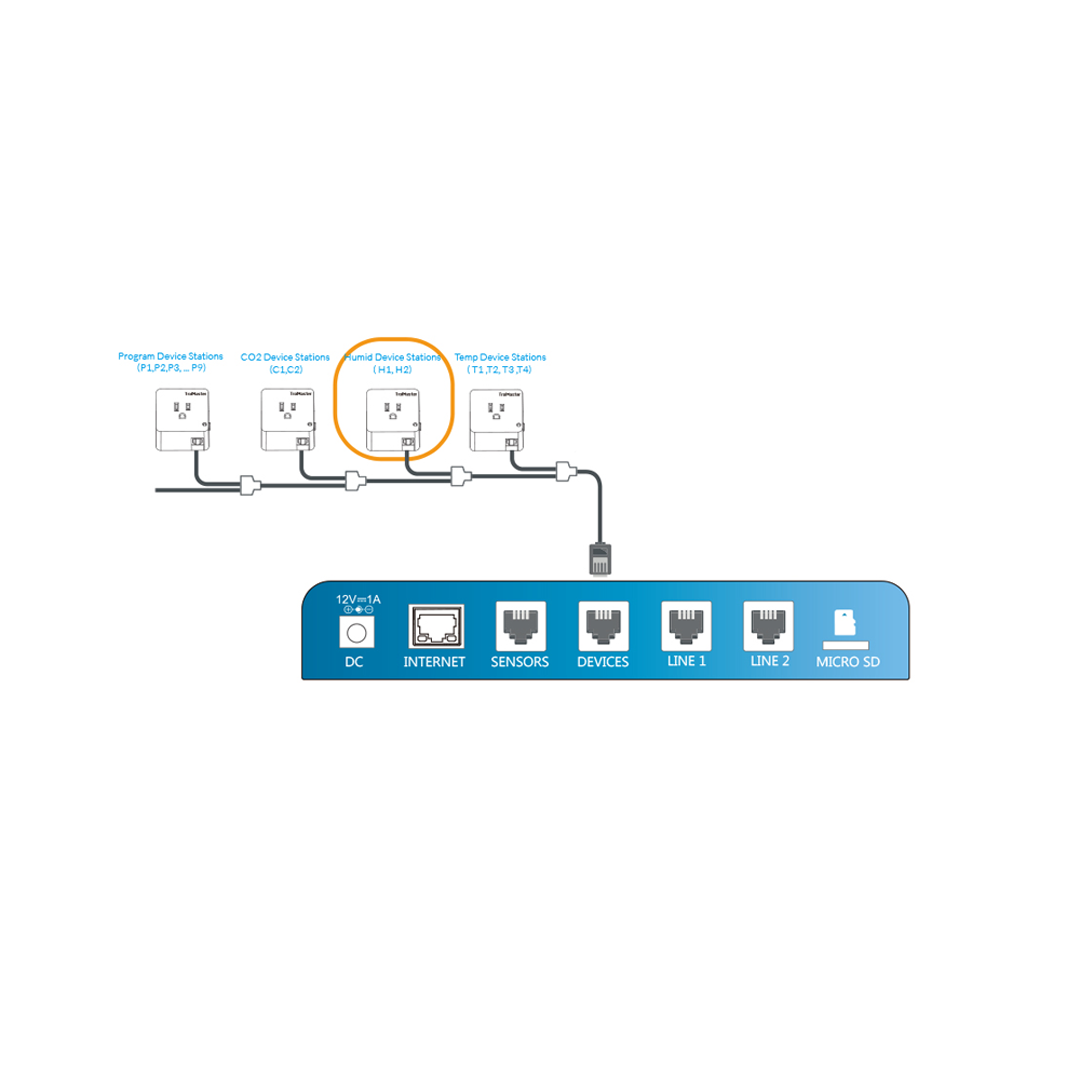

The TrolMaster DSH-2 Humidity control / device modules (240V) allow user to easily connect and control standard humidifying or dehumidifying devices to the Hydro-x. The DSH modules are rated @ 10-amps. *Use with dehumidifiers less than 7 amps to avoid current overload.
US – NEMA: For high-power appliances (dryers, ovens, HVAC, grow lights), the U.S. uses 240V NEMA plugs. These feature thicker prongs, often angled or horizontal, and vary by model (NEMA 6-15, 6-20, etc.). Voltage: 240V at 60Hz.
Specifications
Specifications
Input Voltage
240 VAC, 50/60Hz
Output Current
10A
Output Voltage
240 VAC, 50/60Hz
Working Temperature
32-122°F
Working Humidity
<90%
Package Contents
Device Station
1
16ft RJ12 Cable
1
4ft RJ12 Cable
1
x RJ12 T-Splitter
1
